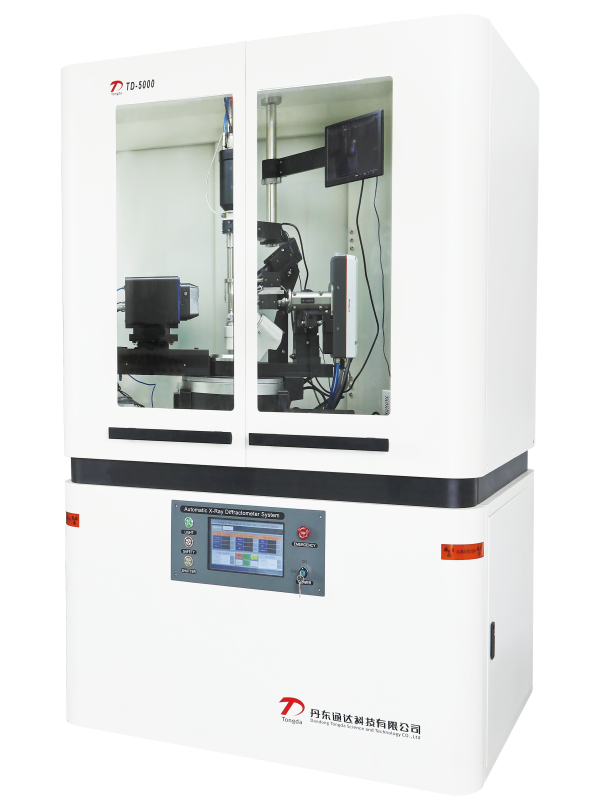

To grow high-quality single crystals suitable for single-crystal diffractometry, a multifaceted approach is required, encompassing solvent selection, crystal growth methods, sample pre-treatment, environmental control, solvent system optimization, consideration of molecular structural characteristics, and meticulous operational details. The following provides a comprehensive guide:

I. Solvent Selection and Properties

Moderate Solubility: The solvent should have moderate solubility for the sample. Excessively high solubility can lead to crystal clusters, while insufficient solubility fails to provide adequate solute for crystal growth.

Moderate Volatility: The solvent's volatility is critical. High volatility causes rapid evaporation and fast, often poor-quality crystal growth; low volatility leads to excessively long growth cycles.

Optical Clarity and Thermal Conductivity: The solvent should have good optical clarity for observing the growth process and good thermal conductivity to facilitate temperature control during the preparation of supersaturated solutions and the growth phase.

Single vs. Mixed Solvent Systems:

Single Solvent: Ideally, use a single solvent that offers both appropriate solubility and volatility for the sample.

Mixed Solvent: If a single solvent is inadequate, a mixture of two or more solvents (e.g., CH₂Cl₂/Et₂O, THF/Et₂O) can be formulated to achieve the desired solubility and volatility profile.

II. Crystal Growth Methods

Slow Solvent Evaporation Method:

Principle: Crystals form as the solvent slowly evaporates, driving the solution from unsaturated to supersaturated states.

Application: Best for moderate sample amounts (10-25 mg is optimal).

Procedure: Use a solvent with a moderate boiling point (60-90°C). Filter the solution gently through a small cotton plug (not filter paper to avoid fibers). Seal the container opening with film and poke tiny holes with a fine needle to control evaporation rate.

Liquid-Liquid Diffusion Method:

Principle: A "poor" solvent slowly diffuses (via volatilization or liquid layering) into a solution of the compound in a "good" solvent, reducing solubility and inducing crystallization.

Application: Suitable for small sample quantities.

Procedure: Use a layering technique: bottom layer = solution in good solvent; middle buffer layer = a mixture of good and poor solvents; top layer = poor solvent. A good-to-poor solvent ratio of 1:2 to 1:4 is often effective.

Vapor Diffusion Method:

Principle: Similar to liquid diffusion, but solvent transfer occurs through the vapor phase.

Application: Also suitable for small sample quantities.

Procedure: Select an appropriate solvent pair (e.g., DMF/Et₂O, NMF/hexane).

Other Methods:

Cooling Method: Crystallization is induced by lowering the temperature to decrease solubility.

Hydrothermal/Solvothermal Method: Used for highly insoluble compounds, involving reactions and crystal growth under elevated temperature and pressure.

Melt Microdroplet Method: Rapid harvesting of single crystals from molten microdroplets, applicable to specific compounds.

III. Sample Pre-Treatment and Purity

Sample Purity: The compound should be as pure as possible (generally >95%) before crystallization attempts. If purification is difficult, repeated recrystallization during growth attempts can sometimes improve purity.

Sample Pre-Treatment: After dissolution, always filter the solution to remove particulate impurities. Avoid filter paper; use a small cotton plug in a pipette for gentle filtration.

IV. Environmental Control and Observation

Quiet Environment: Place the crystallization setup in a vibration-free, undisturbed location.

Regular Observation: Inspect every 1-2 days without disturbing the container. Use a bright flashlight to check crystal size and luster.

Timely Solvent Change: If a solvent system clearly fails (e.g., producing only amorphous precipitate or powder), change to a different solvent system promptly.

V. Optimizing Solvent Systems and Supersaturation

Parallel Screening: If sample quantity permits, divide it into several portions to test multiple solvent systems simultaneously, significantly reducing trial time.

Meticulous Record-Keeping: Maintain detailed records for each attempt (solvent system, temperature, observations) to build knowledge and optimize future efforts.

VI. Influence of Molecular Structure on Crystal Growth

Rigid Structures: Compounds with rigid cores (e.g., aromatic rings) typically crystallize more easily than those with flexible structures.

Alkyl Chain Length: Crystallization becomes significantly more challenging when alkyl chains exceed four carbons in length.

Substituent Type: Chlorine-containing substituents often favor single-crystal growth.

Effect of tert-Butyl Groups: Avoid tert-butyl groups if possible, as they frequently introduce disorder into the crystal lattice, compromising the quality of the structural solution.
