Products
1.The single crystal machine adopts PLC control technology.
2.Modular design, accessories plug and play.
3.Electronic lead door interlocking equipment with double protection.
4.Single crystal X-ray tube: a variety of targets can be selected, such as Cu, Mo,etc.

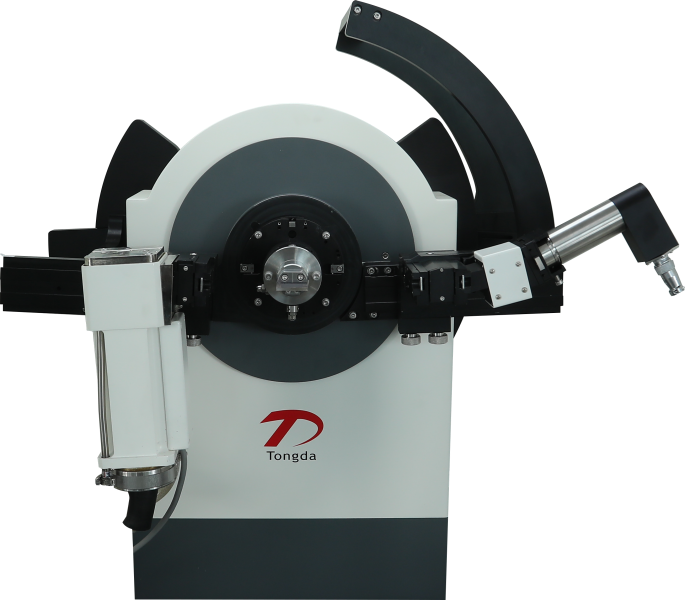

5. Single crystal adopts four-circle concentric technology to ensure that the center of no goniometer remains unchanged.

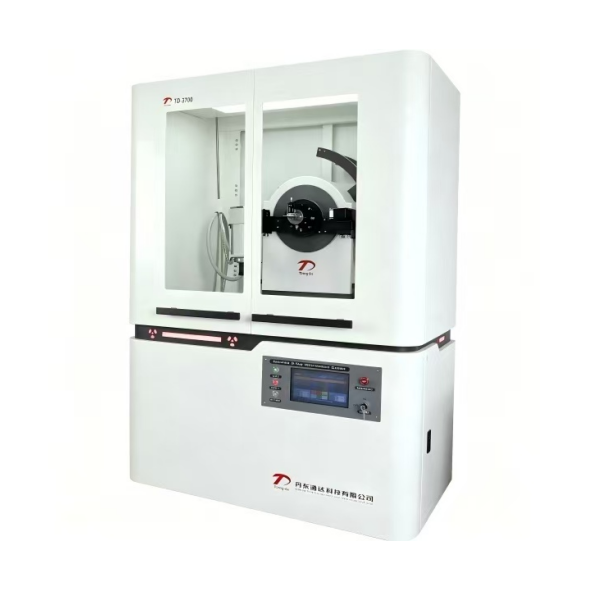

1. The accuracy of Diffractometer is high.
2. The application range of Diffractometer is wide.
3. Diffractometer is easy to operate, convenient and efficient.
1. X-ray instrument is easy to operate and fast to detect.
2. X-ray instrument is accurate and reliable, with excellent performance.
3. X-ray instrument has various functional accessories to meet the needs of different testing purposes.
1. Detector type: Array detector or SDD detector;
2. PLC automatic control calculus, Integration mode conversion, PLC automatically performs PHA, dead time correction
3.Sample measurement type: powder sample, liquid samples, melt-state samples, viscous samples, loose powders, bulk solid samples
4.Available with a variety of diffractometer accessories
5.Maximum output powder: 3kW
Advantages:
Continuously adjustable X-ray penetration depth
Capability to observe the distribution of crystal planes with different orientations
Analysis of orientation distribution in samples such as fibers, thin films, and powders
Examination of structural characteristics like lattice distortion and crystallite size

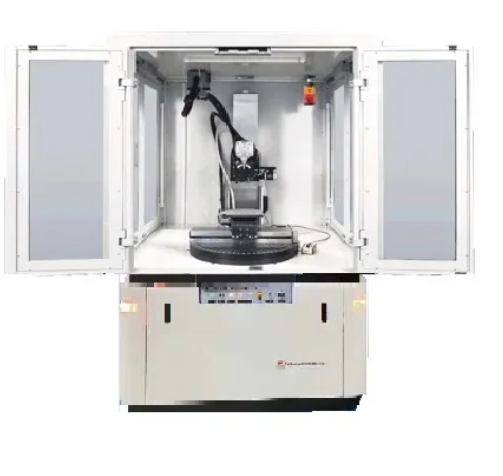

TD-RSD XRD Residual Stress Analyzer
±7MPa accuracy, dual-detector innovation, full-auto operation & powerful software. Optimize processes, enhance product reliability. Compact, efficient, leading solution.
1. Maximum output powder: 3kW
2. Detector type: Array detector or SDD detector
3.Available with a variety of diffractometer accessories
4.Work pattern: PLC automatic control calculus, Integration method conversion, PLC automatically performs PHA, dead time correction
5.Sample measurement type: powder sample, liquid samples, melt-state samples, viscous samples, loose powders, bulk solid samples
Polarographic testing using transmission or reflection Stress testing can be performed using the tilt method or the same tilt method. Thin film testing (in-plane rotation of the sample)
1. Type: Glass tube, ceramic tube, ceramic tube.
2. Target material: Cu, Co, Mo and other targets are optional.
3. Users can customize according to actual needs.

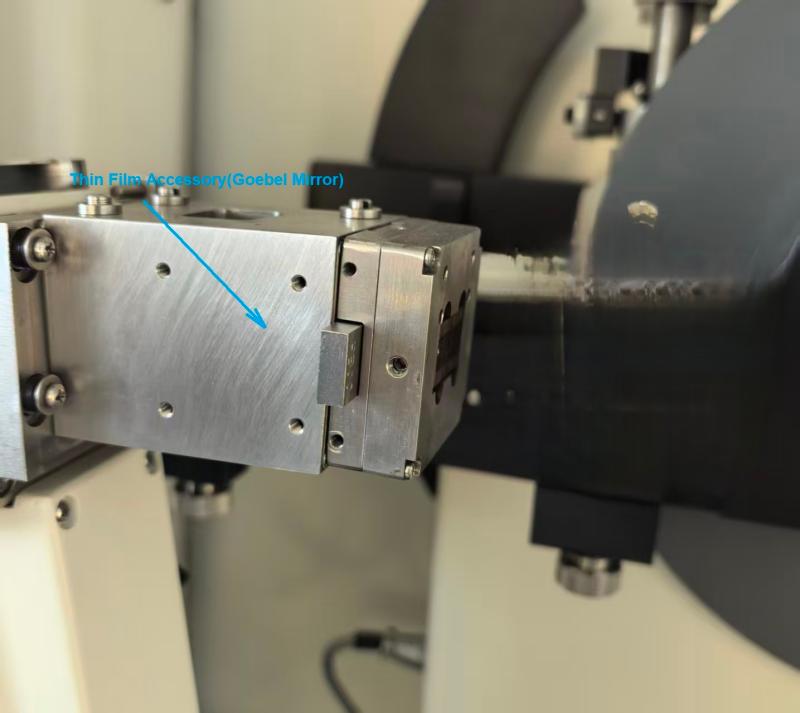

thin film attachment enables precise XRD analysis of nanometer/micrometer films, ideal for semiconductors, coatings and polymers. It enhances signal, reduces substrate interference and supports high-speed scanning, widely used in R&D and quality control with TD series diffractometers.
PLC control system;Modular design, easy operation, and more stable equipment performance
Lightweight design: Lightweight, suitable for rapid on-site measurement;
High-precision measurement: High-precision full-closed-loop vector drive servo system control;
Simple operation: Integrated Windows system or automation functions, supports one-click testing and real-time result display;
Multi-functional compatibility: Measuring carbon steel, alloy steel, titanium alloy and other metals, glass, nickel-based materials and various composite materials;
Speed optimization: Multi-channel silicon microstrip line array detector can provide noise-free performance, high-intensity measurement and rapid data acquisition.

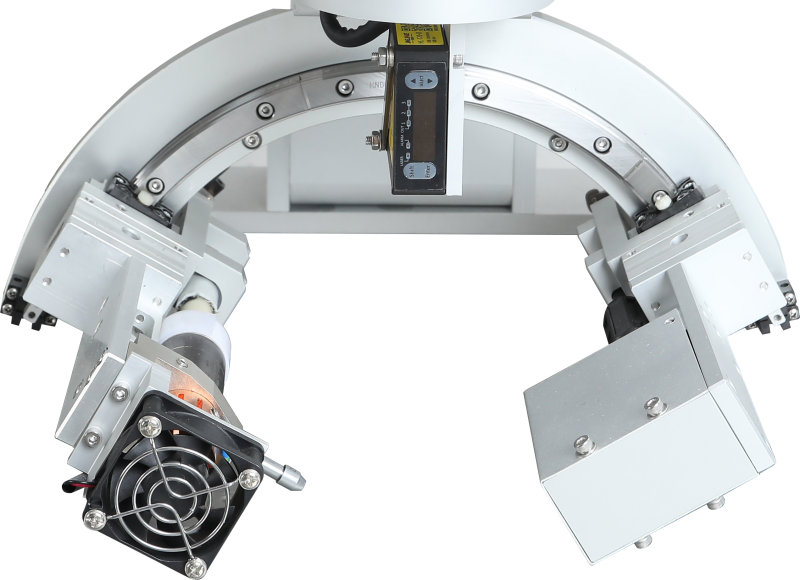

The portable X-ray residual stress analyzer is a non-destructive testing device based on X-ray diffraction technology. It is primarily used for measuring surface and near-surface residual stress distribution in materials such as metals and plastics, combining high precision with field adaptability.

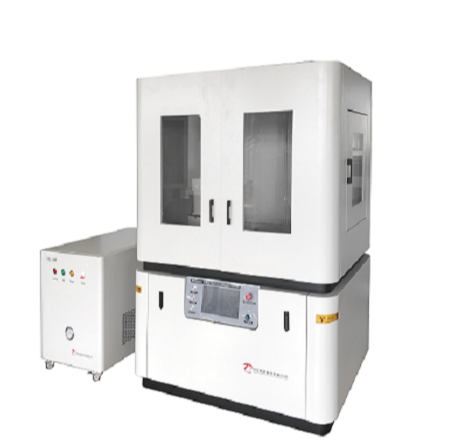

XAFS Spectrometer achieves synchrotron-level data quality with >4M photons/s/eV flux, <0.1% stability, and a 1% detection limit. It empowers research across energy, catalysis, and materials science.

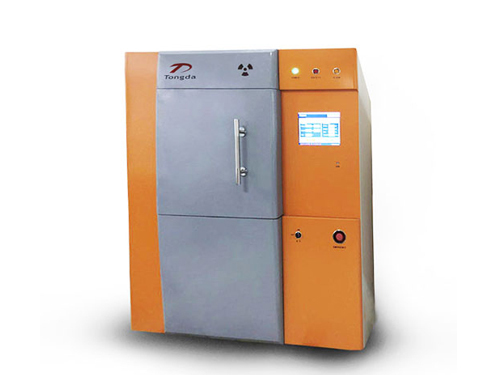

1. The biological x ray irradiator does not require professional knowledge of X-ray operation.
2. The biological x ray irradiator does not require additional X-ray shielding requirements.
3. The biological x ray irradiator is automatically preheated to prolong the service life of the ray tube.

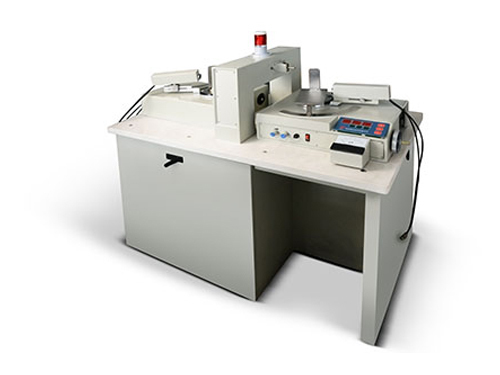

1.The sample table is equipped with a load-bearing track that can measure up to 1 kg and has a diameter of 6 inches (up to 8 inches).
2. A vacuum suction cup device is installed on the sample table.
3. Application: Precise and rapid determination of the cutting angle of natural and artificial single crystals.
1.Maximum output powder: 1200W;
2.Detector Type: Array detector or SDD detector, all of types detectors can be adapted to on this mode;
3.Work Pattern：PLC automatic control calculus, Integration method conversion, PLC automatically performs PHA, dead time correction
The AI fully automated X-ray diffractometer deeply integrates the high-precision manipulation of a robotic arm based on a portable diffractometer. Compared to traditional diffractometers, it significantly reduces manual intervention, making it suitable for R&D scenarios requiring high-throughput and high-repeatability testing. It can be remotely controlled via mobile phone or APP, featuring automatic door opening and closing technology. With autonomous sampling and analysis capabilities, it offers precision and convenience.
1. Maximum output powder: 1200W
2. Detector Type: Array detector or SDD detector, all of types detectors can be adapted to on this mode.
3. PLC automatic control calculus, Integration method conversion, PLC automatically performs PHA, dead time correction
Chinese version residual stress measurement and analysis software supports both linear and elliptical fitting methods. It employs complete stress equations without assuming zero shear stress, along with the elliptical fitting method, allowing simultaneous measurement of normal stress and shear stress values. Each measurement uses more than 9 ψ angles. Peak profile fitting includes Gaussian, Lorentzian, Pearson VII, parabolic, etc. Measurement results can simultaneously display normal stress values, shear stress values, as well as information such as peak intensity, integral width, and full width at half maximum (FWHM).

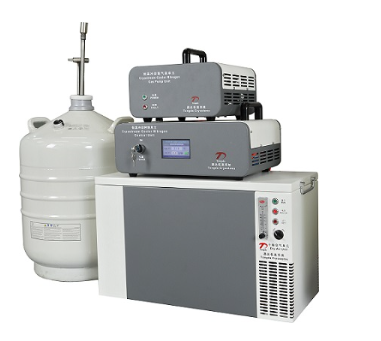

Product Highlights:
High-precision temp control (0.3K stability, 100-300K range)
Rapid cooling: 35min from RT to 100K
Energy-efficient: 0.6L/h LN2 consumption
Compact integrated design
Flexible configuration options
Easy installation & operation
1. Name: Fiber accessories
2. Function: Determine the special crystal structure of the fiber, and determine the orientation of the sample according to the fiber crystallinity and half-peak width.
1.Name: High temperature accessories.
2.Application: Diffractometer accessories.
3.Function: Understand the changes in the crystal structure of the sample or the mutual dissolution of various substances in the process of high temperature heating.
1. The automatic sample changer has accurate positioning and high sensitivity
2. The automatic sample changer is cost-effective and directly supplied by the manufacturer.
Multi-Function Sample Holder enables direct XRD analysis of irregular, bulk and micro-powder samples without destructive preparation. Ensures precise positioning with vacuum chuck and adjustable clamps. Ideal for advanced materials research, pharmaceuticals and geology.
It is equipped with the use of X-ray diffractometer, is a kind of diffractometer accessories.
It is widely used in electrochemical systems containingcontaining carbon, oxygen, nitrogen, sulfur, metal intercalation,etc.
Dandong Tongda's small-angle diffraction accessory precisely measures nano-multilayer film thickness (0°-5° range). Fully compatible with TD-series diffractometers, it offers plug-and-play convenience and 0.0001° reproducibility, empowering research in new energy and semiconductors.
1.Name: Graphite curved crystal monochromator.
2.Application: Diffractometer accessories.
3.Function: increase the peak back ratio and weak peak resolution, reduce the diffraction Angle.
1. High precision of Temperature Accessories.
2. Temperature Accessories are durable and have a long service life.
3. In order to understand the crystal structure change of the sample in the process of low temperature refrigeration.
1.Name: Rotating sample holder.
2.Application: Diffractometer accessories.
3.Function: Ensures good reproducibility of diffraction strength and
eliminates preferred orientation.
Thin film measuring accessory from Dandong Tongda Technology enhances performance by incorporating longer grating sheets. This design effectively filters out scattered radiation, reducing interference from substrate signals while significantly strengthening the thin film diffraction signals.
1.XAFS is a powerful tool for studying the local atomic or electronic structure of materials.
2.XAFS application fields: industrial catalysis, nanomaterials, also quality analysis, heavy element analysis, etc
3.XAFS product advantage: Ultra-high resolution(as low as 0.5eV), Fluorescence pattern(low content high back base), Ultra-high luminous flux, ultra-low detection limits (as low as 0.3-0.5%, 10.1039/D2CC05081A)
