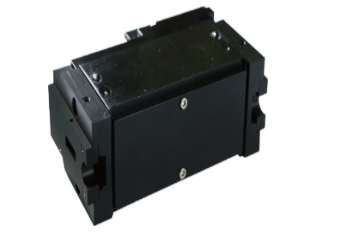

The Parallel Optical Film Measuring Accessory is a critical functional expansion component in X-ray diffraction analysis systems, specifically designed to enhance the testing performance of thin film samples. Through unique optical design and structural optimization, this accessory significantly improves the quality of diffraction signals and detection accuracy for thin film materials, playing an indispensable role in fields such as nanomaterials research and semiconductor processes.

Core Functions and Technical Features

The core value of the Parallel Optical Film Measuring Accessory lies in its effective suppression of scattering interference. By adopting an elongated grating sheet design, the accessory can filter out more scattered rays, significantly reducing the interference of substrate signals on thin film diffraction results. This design highlights the effective diffraction signals of the thin film itself, making it particularly suitable for testing weak-signal samples such as ultra-thin films and nanomultilayer films.

In terms of technical implementation, the Parallel Optical Film Measuring Accessory supports small-angle diffraction analysis within the range of 0°-5°. This angular range precisely covers the characteristic diffraction interval of nanoscale thin film materials. Through synergistic use with small-angle diffraction attachments, it enables accurate measurement of key parameters such as film thickness and interface structure. Its optical system is specially optimized to ensure high parallelism and monochromaticity of the X-ray beam during transmission, thereby obtaining clearer diffraction patterns.

Structural Design and Performance Advantages

The structural design of the Parallel Optical Film Measuring Accessory fully considers practical application needs. The elongated grating sheets not only improve the filtering efficiency of scattered rays but also ensure the accuracy of the incident angle through a precise optical path calibration mechanism. The modular interface design allows for quick installation on various models of X-ray diffractometers, greatly enhancing the equipment's expandability and usability.

In terms of performance, the Parallel Optical Film Measuring Accessory demonstrates multiple advantages: firstly, its excellent signal-to-noise ratio control capability enables clear capture of weak diffraction signals from thin film materials; secondly, good angular resolution ensures the accuracy of test data; additionally, stable mechanical structure and thermal design guarantee reliability during prolonged testing.

Application Fields and Equipment Compatibility

The application scope of the Parallel Optical Film Measuring Accessory is quite extensive. In basic research, it is used for crystal structure analysis of new thin film materials and interface reaction mechanism studies. In industrial applications, the accessory holds significant value in scenarios such as semiconductor wafer inspection, optical coating evaluation, and new energy material research. Particularly in the determination of nanomultilayer film thickness and crystallinity analysis of ultra-thin films, the Parallel Optical Film Measuring Accessorycan provide reliable technical support.

In terms of equipment compatibility, the Parallel Optical Film Measuring Accessory has been successfully adapted to multiple series of X-ray diffractometers, including mainstream models such as the TD-3500 X-ray diffractometer, TD-5000 X-ray single crystal diffractometer, TD-3700 high-resolution X-ray diffractometer, and TDM-20 benchtop X-ray diffractometer. This broad compatibility allows users to achieve consistent testing experiences across different experimental platforms.

Technical Value and Development Prospects

With the deepening development of materials science toward nanoscale and interface engineering, higher requirements are placed on thin film material characterization technologies. The emergence of the Parallel Optical Film Measuring Accessory effectively addresses technical challenges such as weak signals and high background interference encountered in traditional X-ray diffraction analysis of thin films. Its excellent technical performance not only expands the application range of X-ray diffractometers but also provides a powerful analytical tool for new material development and process optimization.

Currently, this technology has been applied and verified in multiple domestic research institutions and industrial enterprises, demonstrating good practical value. In the future, with the continuous in-depth research on nanomaterials and the rapid development of the semiconductor industry, the Parallel Optical Film Measuring Accessory will play an important role in more cutting-edge scientific research and industrial quality inspection scenarios.
