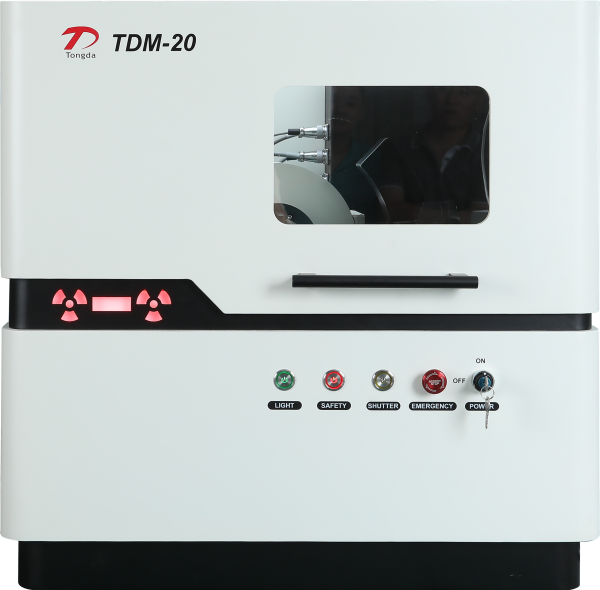

The performance of a benchtop X-ray diffractometer can be influenced by multiple factors. These primarily include:

I. Instrument-Specific Performance

Resolution

Compact X-ray diffraction (XRD) systems typically have a smaller radius, with the X-ray tube and detector positioned closer to the sample, which affects resolution.

XRD resolution is determined by the full width at half maximum (FWHM) of a diffraction peak from a suitable XRD standard (e.g., NIST SRM 660c—Lanthanum Hexaboride, LaB₆). A lower FWHM indicates higher resolution. For a benchtop XRD system, excellent resolution is defined as a FWHM of less than 0.04 degrees 2θ (FWHM on LaB₆ < 0.04° 2θ).

Goniometer Linearity

A goniometer with high linearity provides accurate peak positions across the entire 2θ measurement range.

Linearity can be determined using a standard material, such as NIST 640e—silicon powder. Good peak position accuracy should be within ±0.02 degrees 2θ.

Low-Angle Performance

If analyzing pharmaceuticals, other organic materials, clays, or mesoporous materials, low-angle performance should be a primary consideration.

Low-angle reflections are critical for accurate phase identification and are a requirement for precise quantitative analysis without standards, such as Rietveld analysis. Excellent low-angle performance is demonstrated by clearly discernible peaks when measurements begin at 1 degree (2θ).

II. Sample Conditions

The composition and structure of the sample (including the type and position of atoms in the unit cell, crystallite size, degree of crystallinity, lattice distortion, etc.), as well as the sample's absorption characteristics for incident X-rays (absorption factor), affect the performance of a benchtop X-ray diffractometer. Additionally, the following sample requirements apply:

Sample Form: Benchtop X-ray diffractometers can perform diffraction pattern comparisons for polycrystalline materials in various forms, including powders, bulk solids, thin films, amorphous samples, and metal plates.

Sample Dimensions: Bulk or thin-film samples are typically required to have length and width dimensions within the range of 0–20 mm.

Sample Quantity: Powder samples often have specific quantity requirements. For instance, some instruments require a minimum powder quantity of 500 mg, with particle sizes ranging from approximately 200 to 300 mesh.

III. Experimental Settings

Voltage and Current

Both voltage and current are adjustable and can impact diffractometer performance. For example, the MiniFlex 600 benchtop X-ray diffractometer has a tube voltage range of 20–40 kV (in 1 kV increments) and a tube current range of 2–15 mA (in 1 mA increments).

Scan Speed

Scan speed is adjustable within a certain range. For the MiniFlex 600 model, the scan speed ranges from 0.01 to 100°/min (2θ). The choice of scan speed should be balanced according to experimental requirements.

Scan Range

The scan range also influences diffractometer performance. The MiniFlex 600 model has a scan range of -3 to +145° (2θ), which generally meets the requirements of most experiments.

Diffraction Method

Different diffraction methods may have varying effects on diffractometer performance. Therefore, the choice of diffraction method should be based on the experimental objectives and sample characteristics.

IV. External Environment and Maintenance

Cooling System

An integrated water recirculation cooling system can enhance diffractometer stability and service life. For example, the Longsun FRINGE benchtop X-ray diffractometer incorporates a built-in water recirculation cooling system, eliminating the need for an external chiller.

Laboratory Environment

The diffractometer should be placed in a laboratory environment with controlled temperature and humidity to ensure proper operation and accurate measurements.

Maintenance Protocol

Regular maintenance and servicing can extend the instrument's lifespan and maintain stable performance. This includes routine tasks such as cleaning the sample chamber and inspecting the condition of components like the X-ray tube and detector.

The performance of a benchtop X-ray diffractometer is influenced by a combination of factors. To obtain accurate and reliable measurement results, it is necessary to comprehensively consider the above factors and make appropriate settings and adjustments.
