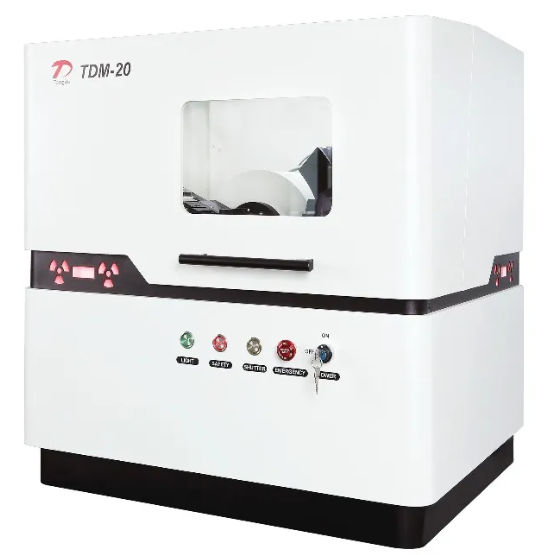

TDM-20 Mini X-Ray Diffractometer: Small Size, Big Insights, Redefining the Landscape of Material Analysis

TDM-20 Mini X-Ray Diffractometer is a high-performance benchtop analytical instrument developed and manufactured by Dandong Tongda Technology Co., Ltd. It is primarily used for phase analysis of polycrystalline materials such as powders, solids, bulk specimens, and pastes. Utilizing the principle of X-ray diffraction, the instrument enables qualitative and quantitative analysis, crystal structure analysis, and other functions. It finds extensive applications across various fields including industry, agriculture, defense, pharmaceuticals, mineralogy, food safety, petroleum, and educational research.

The TDM-20 Mini X-Ray Diffractometer breaks through the conventional 600W limit, delivering a maximum output power ranging from 1200W to 1600W (depending on configuration). Certain models are equipped with a high-frequency high-voltage generator capable of operating at up to 1600W for high-power output, while simultaneously achieving lower overall power consumption. It boasts high-precision goniometer technology with an angular repeatability of 0.0001°, a diffraction peak position measurement accuracy of 0.001°, and a full-profile diffraction angle linearity of ±0.010°.The instrument incorporates an advanced control system based on PLC (Programmable Logic Controller) technology and a modular design for precise operation. For detection, it can be equipped with either a proportional detector or a new high-performance array detector, significantly enhancing overall performance and data acquisition speed. The TDM-20 also offers highly flexible configuration options, supporting a variety of accessories such as a rotating sample stage, a 1D array detector, and a 6-position automatic sample changer.

The TDM-20 Mini X-Ray Diffractometer is further characterized by its significant advantage of being compact and portable, with a small footprint and low weight. It is recognized as one of the smallest benchtop X-ray diffractometers globally, rendering it highly suitable for laboratory environments where space is limited. Furthermore, the instrument is provided with a triple interference-free isolation protection scheme. The X-ray leakage radiation is maintained at ≤ 0.12 μSv/h, ensuring compliance with the GBZ 115-2002 protection standard. Hence, the use of the TDM-20 Mini X-Ray Diffractometer is confirmed to be safe and reliable.

The TDM-20 Mini X-Ray Diffractometer integrates high power, high precision, and a compact design into a single platform. It transcends the limitations of traditional, large-scale X-ray diffractometers, delivering an efficient, convenient, and reliable material analysis solution for various industries. With its advanced technical performance, comprehensive service support, and flexible operation, the TDM-20serves as a powerful tool for laboratory-based material analysis. If you have any requirements for X-ray diffraction equipment, we welcome you to choose the products from Dandong Tongda Science and Technology Co., Ltd.
